Fits the following 2013 Toyota Prius V applications:
- Toyota Prius V 1.8L L4 Hybrid — Wagon — FULL HYBRID EV-GAS (FHEV) — Automatic CVT

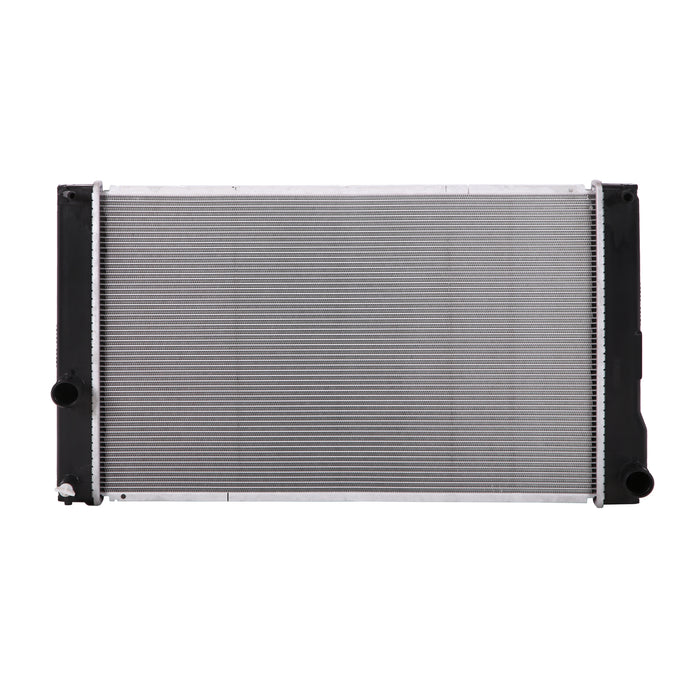

OE-style direct-fit Radiator for the 1.8L L4 Hybrid.
| Product Attributes |
|---|
| Core Height: 17 11/16 in |
| Core Width: 30 1/8 in |
| Core Thickness: 26 mm |
| Inlet Header Width: 2 in |
| Inlet Header Length: 31 7/16 in |
| Outlet Header Width: 2 in |
| Outlet Header Length: 31 7/16 in |
| Inlet Diameter: 1 3/8 in |
| Outlet Diameter: 1 3/8 in |
| Down Flow Or Cross Flow Type: DOWNFLOW |
| Transmission Oil Cooler Included: YES |
| Core Material: PA |
| Core Row Quantity: 1 |
| Tank Material: PLASTIC |
| Transmission Oil Cooler Distance Between Fittings: 14 3/4 in |
| Engine Oil Cooler Included: NO |
| Transmission Oil Cooler Type: PLATED |
| Engine Oil Cooler Type: NONE |
| Cap Included: NO |
| Fitment: 10-11 LEX RX350 W/TOW-PKG RAD PT/AC (CANADA&JAPAN BUILT) |
