Fits the following 2022 Kia Carnival applications:
- Kia Carnival LX 3.5L V6 (Mini Passenger Van)
- Kia Carnival LX+ 3.5L V6 (Mini Passenger Van)
- Kia Carnival EX 3.5L V6 (Mini Passenger Van)
- Kia Carnival EX+ 3.5L V6 (Mini Passenger Van)
- Kia Carnival SX 3.5L V6 (Mini Passenger Van)
- Kia Carnival SX Prestige 3.5L V6 (Mini Passenger Van)

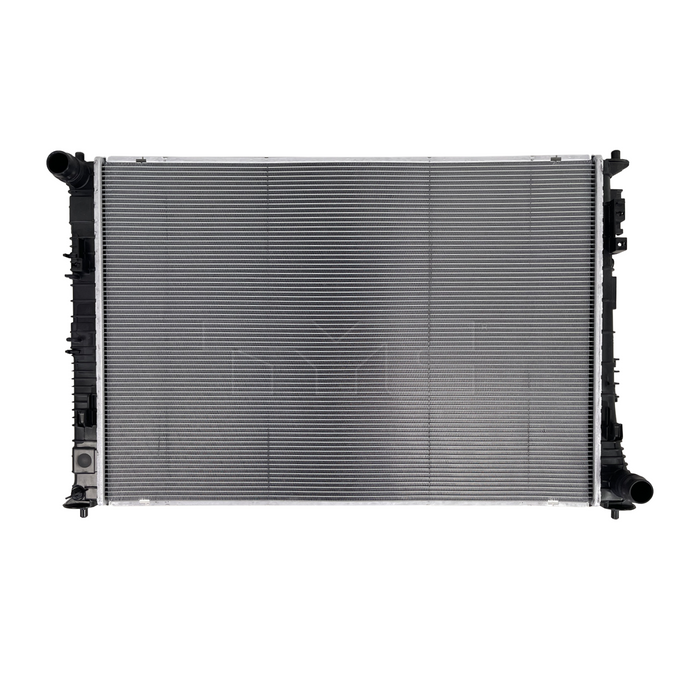

OE-style direct-fit Radiator for the 3.5L V6 engine.
| Product Attributes |
|---|
| Core Length (in): 19.65 |
| Core Height (in): 28.35 |
| Core Thickness (in): 0.63 |
| Core Material: Aluminum |
| Tank Material: Plastic |
| Flow Configuration: Cross Flow |
| Box Length (In): 35.79 |
| Box Width (In): 23.86 |
| Box Height (In): 6.56 |
| Box Weight (lbs): 11.46 |
| No. of Rows: 1 |
| Total Tube Count: 76 |
| Total Fin Row Count: 77 |
| Tube Width x Height: 16 x 1.5" |
| Fin Wave Pitch: 2.8 |
| Fin Wave Height (in): 5 |
| Inlet Connection Type: Hose Clamp |
| Outlet Connection Type: Hose Clamp |
| Inlet Diameter (in): 1.38 |
| Outlet Diameter (in): 1.38 |
| Transmission Oil Cooler Included: No |
| Engine Oil Cooler Included: No |
