Fits the following 2016 Ford Explorer applications:
- Ford Explorer 3.5L V6 Turbo

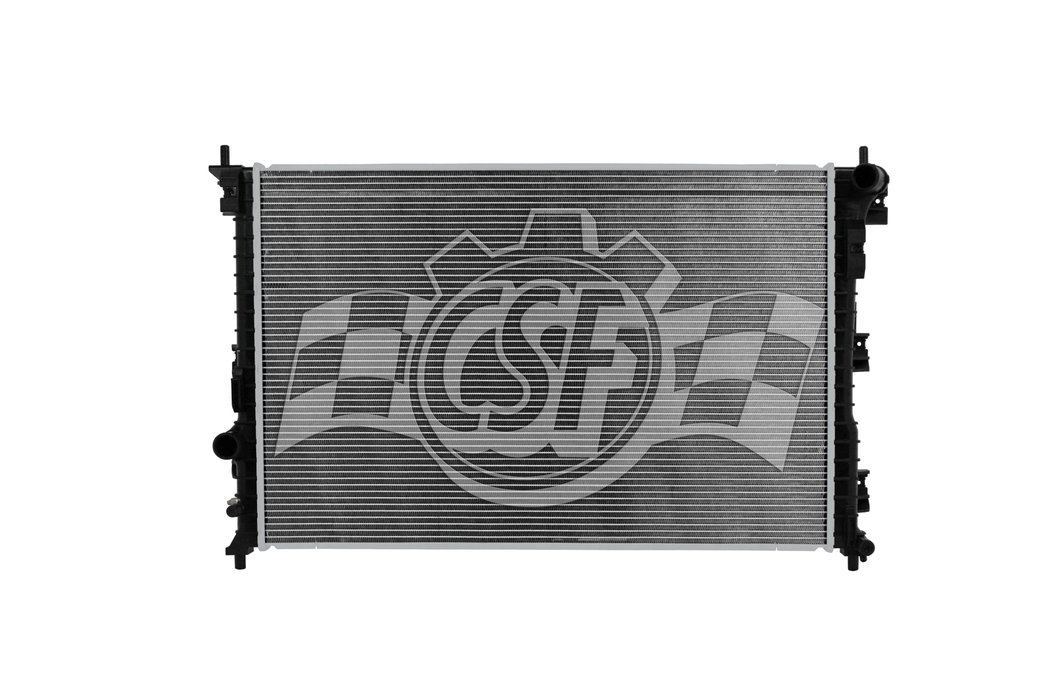

OE-style direct-fit Radiator for the 3.5L V6 Turbo engine.
NOTE: Heavy Duty 1 1/4" core radiator. Multi-fit for various Power Take-Off configurations. For models WITH Engine Oil Cooler (EOC).
Power Take-Off (PTO) is an auxiliary equipment drive found on police and fleet vehicles. It allows the engine to power external equipment (lights, computers, AC) while the vehicle is idling. Civilian Explorer models do not have PTO. To check if your vehicle has PTO, refer to the build sheet or VIN decoder.
| Product Attributes |
|---|
| Box Length (In): 35 15/16 |
| Box Width (In): 24 1/8 |
| Box Height (In): 6 7/16 |
| Box Weight (lbs): 13 |
| Core Length (In): 28 3/4 |
| Core Width (In): 19 |
| Core Thickness (In): 1 1/4 |
| Inlet Length (In): 19 1/2 |
| Inlet Width (In): 1 1/2 |
| Outlet Length (In): 19 1/2 |
| Outlet Width (In): 1 1/2 |
| Top Hose Fitting (In): 1 5/16 Right |
| Bottom Hose Fitting (In): 1 5/16 Left |
| No. of Rows: 1 |
| Core Material: Aluminum |
| Tank Material: Plastic |
| Cross-flow/ Down-flow: Cross Flow |
| Radiator Cap Supplied: No |
| Hazardous Material: No |
| Tech Note: O.E.M. style Plastic tanks & Aluminum core. |
About CSF Radiators:
- CSF factories are ISO/TS-16949 certified
- CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years — over 30 Million Units Sold
- Carefully engineered & Wind Tunnel Tested in laboratory for Cooling Performance Validation
- Over 10,000 different models manufactured & supplied for all leading vehicle brands
- OEM specified Plastic Tank — Aluminum Core Construction
- Tanks made from Virgin Grade Engineered plastic resins, Glass Filled for added Strength & Durability
- Gaskets made from Special Grade "EPDM" rubber to withstand extreme temperatures up to -120°F
- Tubes — Welded Type or Latest Generation "B-Tube" Design
- Fins (Heart of Radiator) — High Performance "Multi-Louvered Design" — OEM Spec
- 100% leak tested before leaving factory at 150% of operating pressure
- Industry Best Packaging — "10 Foot Drop Test" Standard
- Drop-in Fit
- High Performance Transmission Cooler with special Built-in Turbulator, when applicable
- All components are installed, torqued & tested on Radiator during assembly
